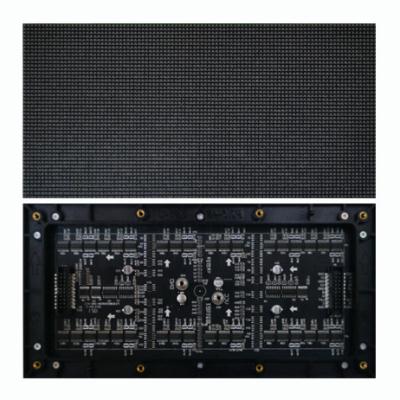

Unit Module	Item	Parameter
	Model Number	CG-P2.5-24S
	Module size	240mm*120mm/240mm*240mm
	Pixel pitch	2.5mm
	Pixels Density	160000 dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD2121/SMD0606/SMD1515
	Pixel resolution	96dots(W)*48 dots(H)
	Max Power consumption	22W
	Module thickness	13.07mm（without magnets）
		26.63mm（with magnets）
	Weight	0.24kg
	Drive type	Constant drive
	Scan mode	1/24scan
	Port type	HUB75-E
	Brightness of white balance	≥1200cd/m2
Cabinet	Dimension	480mm*480mm
	Quantity of Module	4
	Power supply	5V/60A*1 pcs
	Thermal discharge	fan 1pcs
	Pixel per cabinet	192*192
	Best viewing distance	4M～20M
	Best viewing angles	160°(W) 120°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Operation humidity	10%-95%
	Thickness	85mm
Power	Working voltage	AC220V±10%
	Average Power consumption	233W/㎡
	Max.Power consumption	≤700W/㎡
	Current	≤20mA(single LED)
Main technical   parameter	Driving device	Constant current driver IC
	Refresh frequency	≥400HZ
	Grey scale/colors	256levels of each color(RGB)/16.7M colors
	Lifespan	≥100000 hours
	Power switch	Automatic switch
	Display Mode	800*600/1024*768
